L'électronique Cie., Ltd de Shenzhen Shichuangxinke
le professionnel fait la bonne qualité, fournissent le produit et service parfait pour chaque client.
 |
| Place of Origin: | China(Mainland) |
| Nom de marque: | SCX |
| Certification: | CE,ISO,FCC,UL |
| Numéro de modèle: | Le modèle SCX-P4 |
| Quantité de commande min: | 5m² |
|---|---|
| Prix: | 499USD/sqm |
| Détails d'emballage: | Des étuis en bois et des étuis de vol. |
| Delivery Time: | 12-15 working days. |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000sqm/month |
| La hauteur des pixels: | 4 mm | Module size: | 256*128mm |
|---|---|---|---|
| Cabinet size: | 512*512mm | Usage: | Rental |
| LED chip: | SMD2121 | Color: | 1R1G1B |
| Material: | Aluminum | Garantie: | 2 ans |

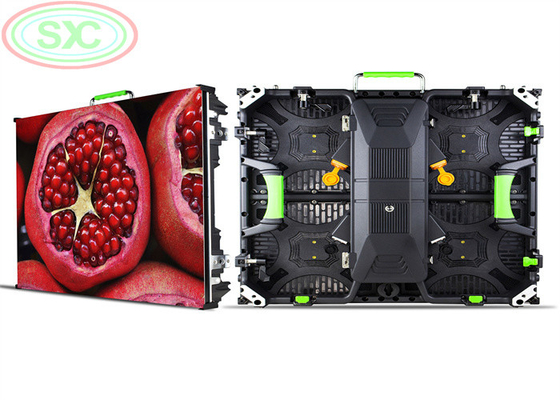

P4 Indoor Full Color LED Display Fixed Rental Series High Quality for Good Price
Product characteristics:
1. High-density indoor surface-mounted lights are composed of red, green and blue LEDs in a combined way to form pixel points, which are evenly distributed on the display screen on the unit board.
2. The product has high brightness and is adjustable, and can work around the clock in various complex environments.
3. The product has solved the mosaic phenomenon well, with good consistency. Whether it is text, pictures or videos, the display effect is clear, delicate and realistic.
4. The viewing angle is large, and the horizontal and vertical angles can reach 120 degrees and 60 degrees. Within this range, the image has no phenotype or color cast at any angle. In terms of maintenance, single-point and single-lamp maintenance can be achieved, and the maintenance cost is low.
Application places: suitable for government squares, leisure advertisements, exhibition centers, entertainment squares, commercial centers and other places. It has functions such as video broadcasting, business information release, and network remote centralized control.
Specifications :
| Indoor P4 LED Display Screen | |||||
| Resolution/mm | 4 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 62500/square meter | ||||
| Module resolution | 64x32 | ||||
| Module size/mm | 256x128 | ||||
| View distance | 4-30m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >900cd/square meter | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/16 SCANNING | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | >720Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||
FAQ
Q1: What is the control system? How is it?
A: We use Nova Taurus Series asynchronous control system. Support cluster play and management. Support APP/Phone/ WIFI/ Ipad/ Laptop/ PC/ Cloud control. It’s very easy and convenient to control.
Q2: Can I have a sample order for led screen?
A: Yes, we welcome sample order to test and check quality. Mixed samples areacceptable.
Q3:Is it OK to print my logo on product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q4: What is your best service?
1: One to one sales engineer to customer responsibility system;
2. Know your project and provide the best solution for it;
3. Track your order and let you know each step and detail of it;
4. Teach you how to install and use the screen;
5. Care the subsequent use of your screen and ensure your after - sales service be well.
Q5. How about your delivery time?
A: Generally, it will take 7-15 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.
Q6:How about your Warranty Term?
A: 2-year warranty. Structure design, installation problem, system problem, how to use the screen…don’t worry, we have professional after-sale team to solve your any questions after you placed an order. And your exclusive sales engineer will also help you get over any problems.
