L'électronique Cie., Ltd de Shenzhen Shichuangxinke
le professionnel fait la bonne qualité, fournissent le produit et service parfait pour chaque client.
 |
| Lieu d'origine: | La Chine, Guang Dong |
| Nom de marque: | Shichuangxinke |
| Certification: | CE RoHS FCC CCC TUV UL |
| Model Number: | SCXK-P2.5 |
| Minimum Order Quantity: | 1 square meters |
|---|---|
| Prix: | USD 1300-2000 per square meters |
| Détails d'emballage: | boîte en bois, boîte en bois, carton, c'est à vous de décider. |
| Delivery Time: | 7-10 working days after deposit payment received |
| Conditions de paiement: | L/C, T/T, Western Union |
| Supply Ability: | 5000sqm per month |
| Resolution/mm: | 2.5 | Pixel configuration: | 1R1G1B |
|---|---|---|---|
| Scanning Mode: | 1/16 scanning | Module Size: | 160x160mm |
| Cabinet size: | 480x480mm | Material: | aluminum/iron |
| Warranty: | 3-5 years | IC: | MB5124/MB5024 |
| Certificats: | Le produit doit être conforme à la norme CE RoHS FCC CCC UL. | Application: | stadium,airport,shopping mall,street advertising |

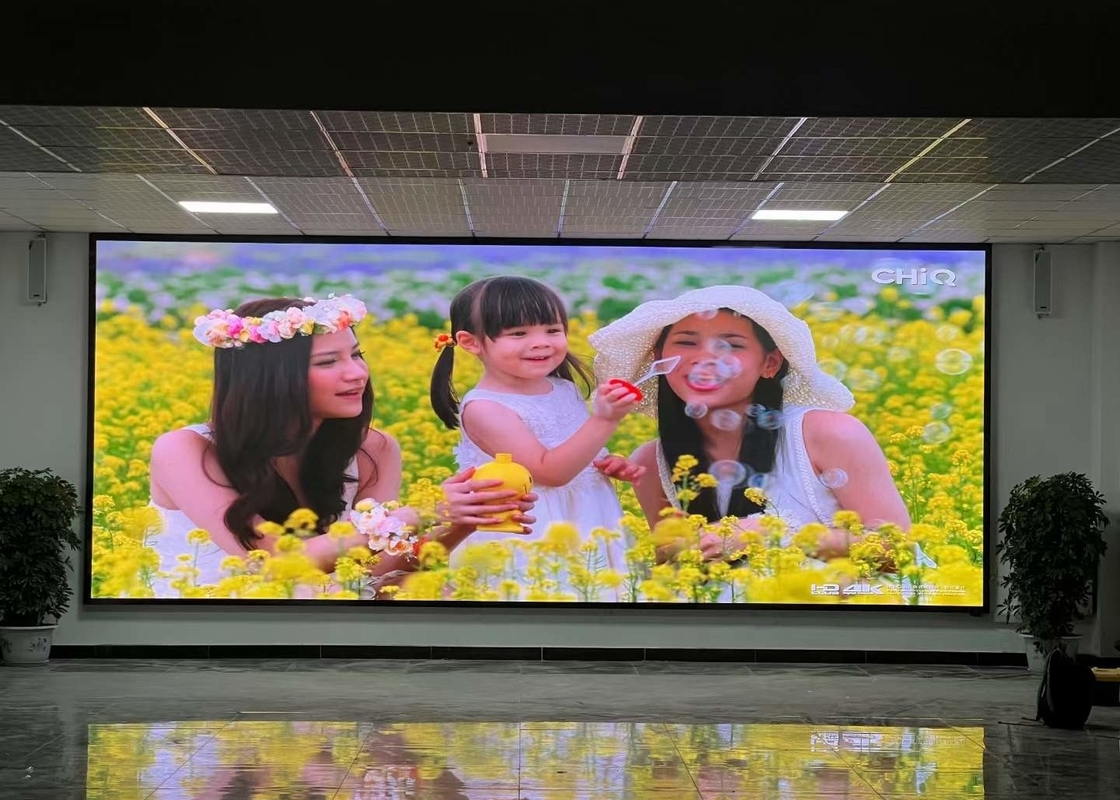

High Quality Pixel Pitch 2.5mm Indoor HD Led Display for Indoor TV Screen
Quick Detail:
1. Resolution up to 160000 pixels/㎡;
2. LED chip: Epistar high brightness;
3. Brightness up to 7000cd/㎡;
4. Power supply: Meanwell; G-erngy, Chuanglian LED driver
5. Control system: Linsn, Nova, etc.
Description:
1. P2.5 SMD LED display has high resolution and is suitable for indoor LED screens;
2. Both horizontal and vertical viewing angles are 140 degrees;
3. P2.5 is increasingly used for electronic digital signage because the trend of LED screens is high resolution.
4. Advertising images and videos are clear and realistic;
5. High contrast ratio of 1000:1, presenting a real and natural color LED screen;
Applications:
Airport Full Color Indoor LED displays advertising
Train station Indoor Full Color LED Displays
Entertainment Bar Indoor Full Color LED Screen
Stadium Indoor Full Color LED Display
Museum Full Color Indoor LED display
Car exhibition LED display
Conference room Indoor Full Color LED Video Display
Shopping Mall Indoor Full Color LED display
Specifications :
| Indoor DIP P2.5 | |||||
| Resolution/mm | 2.5 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 160000/m² | ||||
| Module resolution | 64x64 | ||||
| Module size/mm | 160x160mm | ||||
| View distance | 14-300m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >7500cd/㎡ | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/30 SCANNING | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | >3000Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||
Competitive advantages:
1. The brightness and color of the P2.5 indoor full-color LED display are uniform;
2. The P2.5 full-color LED display uses all-black LED chips;
3. The contrast of the indoor full-color LED display is as high as 1000:1, which truly restores the color of the content;
4. The Sum driver IC is used to achieve high refresh rate and high grayscale level;
5. A wide viewing angle of 140 degrees can be achieved in both horizontal and vertical directions;
6. The P2.5 LED display has a high resolution and is suitable for indoor rental activities that require high-quality demonstrations, and the cost of large-size indoor LED displays is lower;
♦ Production process
1) Incoming Inspection→2)DIP→3)Plug-in
→4) Wave Soldering→5)After Welding→6)Testing
→7) Semi Finished Aging→8)Module Assembly
→9) Gluing→10)Finished Aging→11)Detection Finishing Warehousing
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦ Why choose us
Continues Quality
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly perfect our products.
♦ Frequently Asked Questions
What kind of payment terms you can accept ?
We can accept T/T and Western Union.
What about your Led Display quality ?
Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of
our products continuity.
What is your delivery time ?
Within 7-35 days according to your area and quantity.
Is your LED display competitive ?
Yes,we are led display manufacturer for more than 10 years.Mass and professional production ensure
our led display’s competitiveness.
Welcome to visit our website and inquire us more info,waiting for you all the time!!!
