Name: Rental Large Full Color LED Display 12mm Pitch 1/4 Scan 192*192mm Module IP65
Brand: Shenzhen ShiXin Display Technology Co.,Ltd
SKU: Le code de l'émetteur est le code de l'émetteur
Price: 10000.00 USD
Availability: InStock

Aperçu Produits la publicité des écrans menés

Rental Large Full Color LED Display 12mm Pitch 1/4 Scan 192*192mm Module IP65

Détails sur le produit:

Lieu d'origine:	Chine (continentale)
Nom de marque:	SCXK
Certification:	CE,RoHS,FCC,CCC,SAA,TUV,UL
Numéro de modèle:	Le code de l'émetteur est le code de l'émetteur

Conditions de paiement et expédition:

Quantité de commande min:	Négociations
Prix:	Negotiations
Détails d'emballage:	Les boîtes en bois et les boîtes volantes, c'est à vous de décider.
Délai de livraison:	7-10 jours ouvrables après paiement
Conditions de paiement:	T/T, Western Union, L/C, D/A, D/P, MoneyGram
Capacité d'approvisionnement:	3000 pièces/mois

Contact

Description de produit détaillée

Pas:	12 mm	Mode de balayage:	1/4
Mode de contrôle:	Synchronisé par DVI	les certifications:	Ce type de produit est utilisé pour la fabrication de produits destinés à la vente au détail.
Appels de réparation:	Une piste de danse, un centre commercial publicitaire, un aéroport, une gare, un concert...	Taille du module:	192 * 192 mm
Matériau d'armoire:	Aluminium	Résolution:	16 * 16
Densité de pixels:	6944 points/m2	Luminosité:	≥ 7500cd/m2
Garantie:	3-5 ans	Type LED:	Dip347
Tension de travail:	Dc5v	Options intérieures:	P1. Je vous en prie.667Je suis P1.923P2, P2.5P3, P3.91P4, P5, P6, P8, P10...
Mettre en évidence:	rental full color LED display , 12mm pitch LED screen , IP65 waterproof LED module

Rental Large Full Color LED Display 12mm Pitch 1/4 Scan 192*192mm Module IP65

P12 DIP Full Color Advertising LED Display 1/4 Scan 192*192mm Module IP65

Brand name: SCXK-RGB LED Display

Feature	Description
Inner Structure Material	Stainless steel, aluminum, galvanized sheet optional. Conventional aluminum profile.
Frame	Waterproof casing/Simple casing
Pixels	Available for customized. such P3, P3.91,P4,P4.81,P5, P6,P8, P10...
Pixel configuration	RGB, available for customized
The Packaging	Bubble Cotton & cardboard, Wooden boxes and flight cases for export.

Parameter Description

Parameter	Specification
Resolution/mm	12
Pixel configuration	1R1G1B
Pixel density/pixels/m²	6944/square meter
Module resolution	16x16mm
Module size/mm	192*192mm
View distance	14-300m
Single point brightness adjust	Can be added
Single point color adjust	Can be added
White balance brightness	>7500cd/square meter
Color temperature	6500K-9500K
Horizontal view angle	120(degrees)
Vertical view angle	60(degrees)
Signal Process bit	10 or 16bit
Grey process	1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances	Internet cable:100m, multimembrane:500m, monofilm:2km
Driving mode	Constant driving current
Scanning mode	1/4 SCANNING
Frame rate	60Hz
Refresh frequency	>3000Hz
Control mode	Computer synchronous
Brightness adjusted range	Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss
Out of control point	<1/10000
Working hours	≥72hours
Mean Time Between Failure	>5000hours
Life time	100000hours
Life-all-white(brightness halving)	50000hours
Environment temperature range	Operating temperature range: -20-45℃
Self-check technology	LED spot self-check, communications check, power check, temperature monitor(need customization)
Remote monitoring	Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization)
Software environment	WindowsNT,Windows1999,WindowsXP
Luminous point width between centres	Deviation<3%
Brightness uniformity	<10%
Color uniformity(chromaticity coordinate)	±0.003
Power supply request	AC85-264V(50Hz-60Hz)
Contrast	(1000:1)
System protection	Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working)	working:10-95%
Humidity(storing)	storing:10-95%

Features

First-class LED chips, provided by Japan Nichia and other high standard LED chips to ensure long life and high brightness.
High contrast ratio: above 2000:1, extremely high contrast ratio ensures vivid image of LED display system.
Clear and vivid image quality: more than 120 degrees horizontally and vertically, ensuring to attract more viewers, so that the LED display investment to get a short ROI.
Long-term brightness: The use of high-quality LED chips and bulbs ensures that the LED display can last up to 11 years with low lumen depreciation.
High Definition: LED display has high resolution and can maintain good video effect.

Advantages

High brightness: Due to the use of high brightness LED lights, viewers can see the image clearly from a distance under strong sunlight.
Long service life: The use of high quality LED lamps as the core material and the patented PCB design of the screen fundamentally guarantee the long service life of the product.
Stable performance: special treatment for anti-electromagnetic waves, the screen adopts distributed scanning and modular design, stable performance.
Delicate image: non-linear correction technology makes the image delicate and clear, and the video image is vivid and realistic.
Excellent flatness: The precision design of module frame components controls the deviation of adjacent modules within 0.1 mm, with excellent flatness and no mosaic phenomenon.
High Contrast: Consistent deep black and patented masking enable higher contrast and more vivid colors.
Easy Installation: Modular design makes installation and maintenance easier.
Excellent material: Adopting the same grade of imported LED chips from Taiwan, the United States or Japan, high-quality driver IC, low-noise power supply, which can ensure the screen to work smoothly in the environment of -40~60.
Multiple formats: Customers can choose any screen display format, can support TXT, graphics, pictures, animation and video programs.
Paint: Paint can protect PCB and related components from environmental erosion, with good resistance to high and low temperatures, as well as insulation, moisture, crepe, dust, corrosion and other excellent characteristics.
High anti-vibration performance: the cabinet must be tested for anti-vibration performance before shipment to avoid poor contact due to loose screws or disconnected cables after a long time of line transportation.
High waterproof performance: the cabinet must be waterproofed during the production process, and its front and back can be completely waterproof, so that it can work smoothly in outdoor all-weather.

Produit Tag:

Personne à contacter: Lillian seori

Téléphone: +8619386814677

Envoyez votre demande directement à nous

Autres Produits

Type LED: SMD3535

Fonction d'affichage: Vidéo / image

meilleur prix

Écran publicitaire à LED extérieur P10 320x160 mm

Pixels: 10 mm

Couleur de la puce de tube: Couleur complète

Matériau d'armoire: Fer ou aluminium pour les options

Configuration des pixels: 1R1G1B

meilleur prix

Rental Large Full Color LED Display 12mm Pitch 1/4 Scan 192*192mm Module IP65

Rental Large Full Color LED Display 12mm Pitch 1/4 Scan 192*192mm Module IP65

rental full color LED display

12mm pitch LED screen

IP65 waterproof LED module

panneau publicitaire a conduit,

rental full color LED display,

12mm pitch LED screen

Écrans de publicité extérieure de SMD1921 P4 LED, panneaux de mur visuels de LED 1/8 méthode d'entraînement

P10 annonçant des écrans de LED

SMD P8 annonçant des écrans de LED

La grande publicité multi extérieure de panneau d'affichage de la couleur 1R1G1B LED de 8mm pour le chemin de fer

affichage mené polychrome extérieur de publicité de 10mm avec 16dots x 16dots

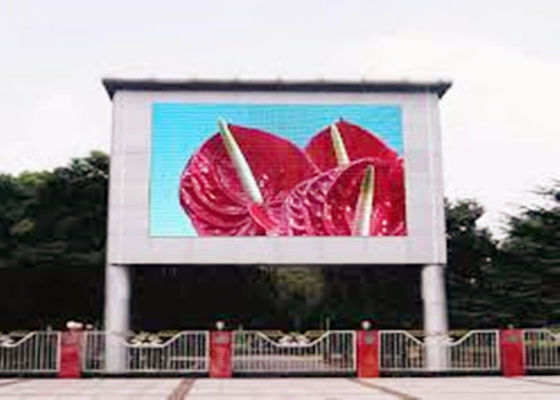

Panneau d'affichage LED extérieur étanche P8 IP65 SMD3535 couleur complète
