L'électronique Cie., Ltd de Shenzhen Shichuangxinke
le professionnel fait la bonne qualité, fournissent le produit et service parfait pour chaque client.
 |
| Lieu d'origine: | La Chine |
| Nom de marque: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/UL |
| Numéro de modèle: | P6 |
| Quantité de commande min: | sqm 10 |
|---|---|
| Prix: | negotiation |
| Détails d'emballage: | caisse de contreplaqué, cas de vol, vous choisissez ce que vous aimez. |
| Délai de livraison: | 7-12 jours ouvrables |
| Conditions de paiement: | T/T, Western Union, MoneyGram, L/C, D/A, D/P |
| Capacité d'approvisionnement: | sqm 6500 par mois |
| Application :: | magasin de détail extérieur et visuel de publicité commerciale | Couleur :: | Polychrome, RVB 3in 1 |
|---|---|---|---|
| Taille de panneau :: | 192*192mm | Lancement de pixel :: | 6mm |
| Nom de produit :: | écran de visualisation mené | Éclat :: | 6500cd/sqm |
| Angle de visualisation :: | 160/120 | Taille de Cabinet :: | 576*576mm |
| Durée :: | 100000hours | Garantie :: | 2 ans |
| Surligner: | Écrans de l'étape LED de pixels de 6MM,6500cd/sqm écrans de l'étape LED,SMD3535 LED annonçant des panneaux |
||
Product introduce:
1. LED display is the wide range of applications of high-tech display devices in recent years, with a high definition, stable quality, long life, flexible display function, it is very suitable for playing text, graphics, and multimedia festival.It even occupies an irreplaceable status in the outdoor area.
2. Full-color LED display can be used to broadcast news, entertainment information, commercials, video animation and a variety of media types, so as to achieve the effect of listen and watch to be together.
3. SCXK-P6 is a channel projects design, extensively applied to various projects and leasing ones, free to play video, graphic, image programs, and real-time, simultaneous and clear broadcast to disseminate various information.
Product Type: P6 HD highlight quality display with seamless stitching
Pitch: 6mm
Pixel accuracy: 27777 points / square meter
Scope of application: Widely used in venues, stadiums, banks, post and telecommunications, government agencies, terminals, railway stations, securities markets, medical systems, electric power, exhibition halls and other needs of the publicity, advertising, Guided places etc.
Technical Parameters:
| Module composition | Production name | SCXK-P6 |
| Pixel pitch(mm) | 6 | |
| Module resolution(W×H) | 32*16 | |
| Module size(mm) | 192(W)×192(H) | |
| Led configuration | SMD3535 3 in 1(1r1g1b) | |
| Module maximum power(W) | 30 | |

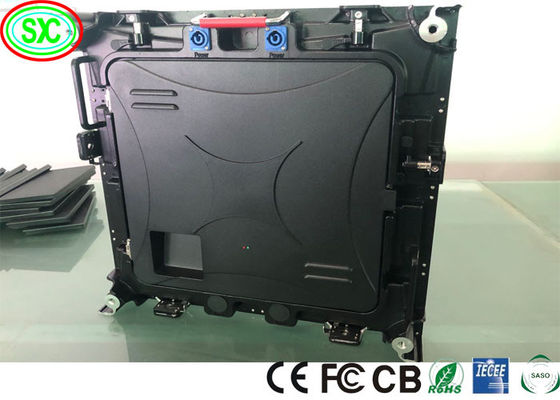

Cabinet | Cabinet size(mm) | 960(W)×768(H) |
| Box pixel density(dots/m2) | 27777 | |
| Cabinet flatness(mm) | ≤0.2 | |
| Maintenance methods | After maintenance | |
| Cabinet material | steel cabinet | |
| Optical parameters | Single point brightness correction | yes |
| Single point chromatic correction | yes | |
| Brightness(nits) | 1000-3000cd | |
| View angle(Horizontal/Vertical) | 120°/110° | |
Brightness / Chromaticity uniformity | ≥97% | |
| Contrast | 4000:1 | |
Electrical parameters | Maximum power(W/Cabinet；W/m2) | 600；1000 |
| Average power(W/Cabinet；W/m2) | 200；350 | |
| Power requirements | AC90~264V,frequency 47-63(Hz) | |
| Security features | GB4943/EN60950 | |
| Processing performance | Frame frequency(Hz) | 50&60 |
| Driving mode | Constant current 1/16 scan | |
| Gray scale | 16384 | |
| Refresh rate(Hz) | ≥2000 | |
| Color processing digits | 16bit | |
| Video playing capabilities | K HD, 4K ultra-high definition screen | |
| Use parameters | Life expectancy(hrs) | 100,000H |
| Operating temperature / humidity range(℃/RH) | -10 – 40 / 10%-80%RH | |
| Storage temperature / humidity range(℃/RH) | -20 – 60 / 10%-85%RH |

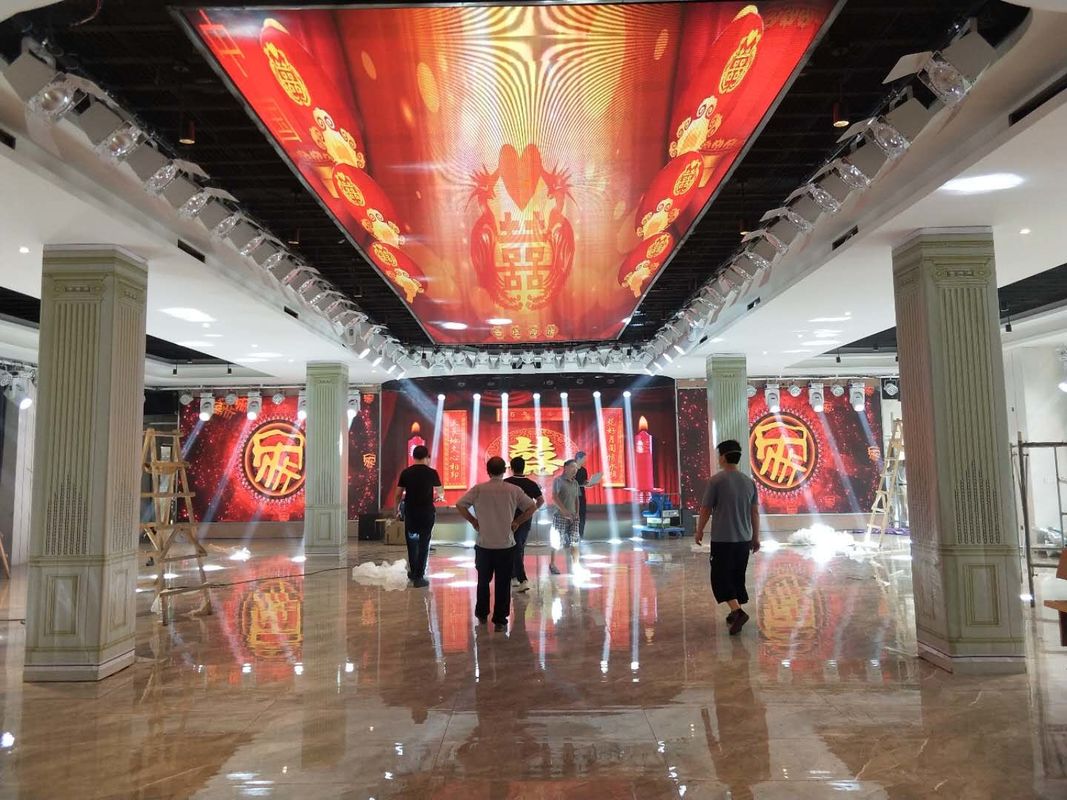

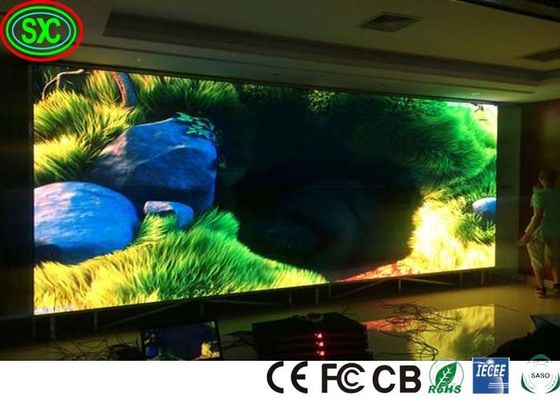

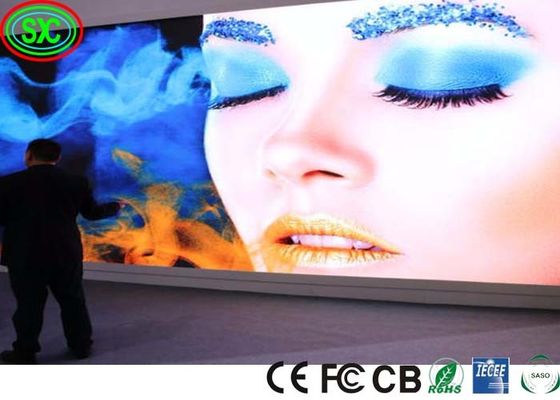

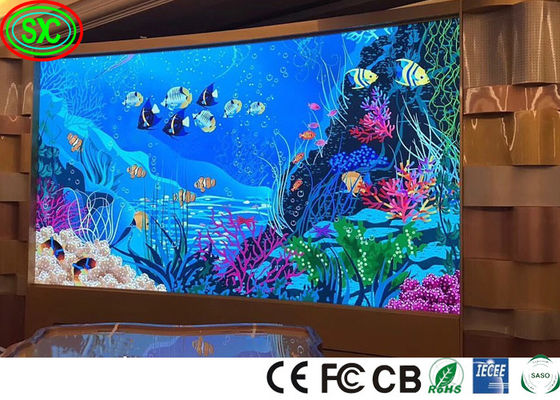

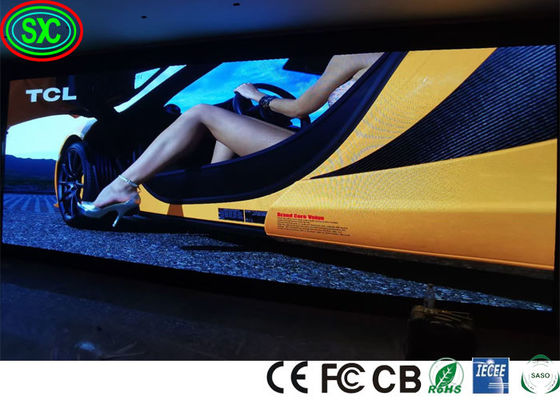

Our case
Product item
Many other hot product, welcome to visit our company!
Certificate
Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
Our service
Eachinled has a perfect service system, including pre-sale service, in-sale service and after-sale service. To provide high quality service for our customers, we train every salesman with necessary product maintenance knowledge and organized a Technology Supporting Department with a group of excellent and professional engineers. Any problem you can contact us at any time you like.
Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
