| Lieu d'origine: | LA CHINE |
| Nom de marque: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/UL |
| Numéro de modèle: | P3 |
| Quantité de commande min: | 3 |
|---|---|
| Prix: | Négociable |
| Détails d'emballage: | cas de carton+wooden ou cas de vol. |
| Délai de livraison: | 5-8 jours ouvrables |
| Conditions de paiement: | T/T, Western Union |
| Capacité d'approvisionnement: | 5000sqm par mois |
| Application :: | commerce | Couleur :: | Polychrome |
|---|---|---|---|
| Taille de panneau :: | 576x1920x75mm | Nom de produit :: | P3Indoor a mené l'affichage d'affiche |
| Éclat :: | 1200cd/sqm | Densité de pixel :: | 160000dots/sqm |
| Taille de module :: | 192x192mm | La vitesse de régénération :: | 1920 hertz |
| Mode d'entraînement :: | 1/32 balayage | La température fonctionnante :: | -20 degré à 60 degrés |
| Angle de visualisation :: | 140 /140 | ||
| Mettre en évidence: | 1200cd/Sqm affiche portative de la publicité LED,P3 affiche portative de la publicité LED,Affichage debout libre de l'affiche SMD2121 |
||
Feature
1) Super light, each LED poster screen weighs 45KG.
2) Easy to install and convenient to move it.
3) Front and rear maintenance.
4) 2- 6pcs LED posters can be joined together and produced a larger complete picture.
5) It can be controlled by 3G,4G, WIFI, USB and HDMI.
6) It achieves to send video or pictures by intelligent terminal APP.

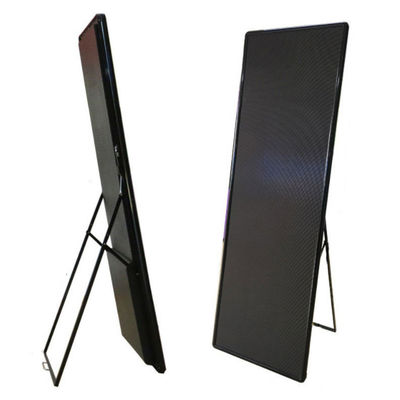

7) Support floor standing, base standing, wall-mounted and hanging installation.
Specification
| Pixel Pitch | 2.5mm |
| Pixel Density | 160000dots/sqm |
| Color Configuration | 1R1G1B |
| LED Package | SMD2121 |
| Module Size | 320mm x 160mm |
| Module Resolution | 128dots x 64dots |
| Drive Mode | 1/32 Scan |
| Drive IC | ICN2153 |
| Brightness | 1200 cd/sqm, adjustable by software |
| Viewing Distance | 2m-50m |
| Viewing Angle | H: 140°; V:140° |
| Refresh Rate | 3840HZ, adjustable by software |
| Frame Rate | 120frame/s |
| Grey Scale | 16.7M colors(Synchronized) |
| Color Temperature | R.G.B brightness 256 level adjustable |
| Power Input | AC110V/ 220V ±10%, 50HZ |
| Max Power Consumption | 850W/sqm |
| Ave. Power Consumption | 350W/sqm |
| Storage Temperature | -30℃~+70℃ |
| Working Temperature | -20℃~+50℃ |
| Blind Spot Rate | <1/10000 |
| MTBF | >10,000 Hours |
| Life Span | >100,000 Hours |
| Waterproof Level | IP43 |
Specifications
| Item | Parameter | Item | Parameter |
| Model Number | HBY- S300 | Module Size | 192mm*192mm |
| Pixel Pitch | 3mm | Pixels Density | 111111dots/m2 |
| Pixel Configuration | 1R1G1B | LED Package Mode | SMD 3 IN 1 lamp ZJLead-LED |
| Pixel Resolution | 64dots(W)*64dots(H) | Max Power | 25W |
| Module Thickness | 17mm | Weight | 35kg |
| Drive Type | Constant current | Scan Mode | 1/32 scan |
| Brightness of White Balance00 | ≥1000 nit | Port Type | HUB75E |
Q1. How is your MOQ
A: module----1 piece: led display----1 ㎡
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Is it OK to print my logo on led display?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q4. Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q5. Are you a factory or just a trading company?
Our HONGHUI is a LED display factory with R&D department and production line, professional engineering team and energetic sales team. Warmly welcome to visit our HONGHUI factory and have face-to-face business talk to better understand each other. Or when you are free, we can have video call to show our factory.
Eachinled has a perfect service system, including pre-sale service, in-sale service and after-sale service. To provide high quality service for our customers, we train every salesman with necessary product maintenance knowledge and organized a Technology Supporting Department with a group of excellent and professional engineers. Any problem you can contact us at any time you like.
Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
