L'électronique Cie., Ltd de Shenzhen Shichuangxinke
le professionnel fait la bonne qualité, fournissent le produit et service parfait pour chaque client.
 |
| Lieu d'origine: | LA CHINE |
| Nom de marque: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/UL |
| Numéro de modèle: | P8, P10 |
| Quantité de commande min: | 10sqm |
|---|---|
| Prix: | negotiation |
| Détails d'emballage: | le cas en bois et le cas de vol peuvent être de choisir. |
| Délai de livraison: | 7-12 jours ouvrables |
| Conditions de paiement: | L/C, Western Union, MoneyGram |
| Capacité d'approvisionnement: | 5000sqm par mois |
| Matériel de Cabinet: | l'armoire en acier repassée ou aluminium de moulage mécanique sous pression | Taille de Cabinet :: | 960mm*960mm |
|---|---|---|---|
| Taille de module :: | 320mm*160mm | Densité de pixel :: | 10000 points/sqm |
| Éclat de blanc :: | 7500CD/sqm | Estimation d'IP :: | IP65/IP54 |
| Application :: | Affichage de location | Matériel de Cabinet :: | L'aluminium de moulage mécanique sous pression |
| Poids de Cabinet :: | 26kg | Fonction d'affichage :: | Vidéo |
| Dimension d'écran :: | Taille adaptée aux besoins du client | ||
| Surligner: | affichage à LED de stade de Cabinet de 960x960mm,affichage à LED du stade 7500cd/sqm,Le périmètre du stade IP65 a mené l'affichage |
||
Parameter specification
| model | P10 | |
| Pixel unit module | Pixel pitch(mm) | 10 |
| Pixel density (dots/sqm) | 10000 | |
| LED type | SMD | |
| Module size(mm) | W320×H160 | |
| Pixel composing | RGB full color | |
| Pixel unit screen | screen size(mm) | 960*960mm |
| module Resolution (nits) | 32*16 | |
| Cabinet structure | Water-proof | |
| installation | fixed on the back | |
| screen material | magnesium alloy | |
| Protect degree | IP65 front ,IP54 rear | |
| Viewing distance(m) | 10~100m | |
| Brightness(cd/sqm) | 7000 cd/sqm or 7000 nits or more | |
| Power consumption (w/sqm) | Max 900W/sqm ,can be custom make 500W max | |
| Driving IC | 1/4 scan MBI Brand Driver | |
| Refresh rate(HZ) | ≥2000- 3000 | |
| Viewing angel(c) | H120 V110 | |
| Other parameter | Image adjustment | contrast, tonal, the color saturation, gray calibration coefficient, color range, image variable times, etc |
| Image processing | Video noise reduction, fast motion compensation, edge to sharpen, edge smooth, color space transformation and control, coordinate transformation of grey scale, etc | |
| Brightness uniformity | The whole screen on the monochrome, minimum pixel luminance and the brightest pixel luminance than more than 0.9 | |
| Gray | 65536 | |
| Color temperature/contrast | Red, green, and blue brightness and contrast can through the software level 100 adjustable, color temperature can be adjusted according to need | |
| Transmitting Distance | The shielded twisted-pair cable transmission distance for 100 meters, the biggest up to 140 m. Multimode fiber of up to 500 meters, the single-mode optical fiber to 20 kilometers | |
| Input Signal | RF,S-VIDEO,RGBTV,YUT,YC,COMPOSITION | |
| Control System | PCTV non-liner editing card+DVI display card+main control card+optic fiber transmission(Optional) or video dealer | |
| Average No Failure Time | 20000 hours | |
| Life span | 100,000 hours | |
| Out-of Control rate | 0.0001 | |
| To floor drain current | Less than 3.5MA | |
| Control system | Synchronized | |
| Operating Environment Temperature | -20°C—65°C Optional |
|

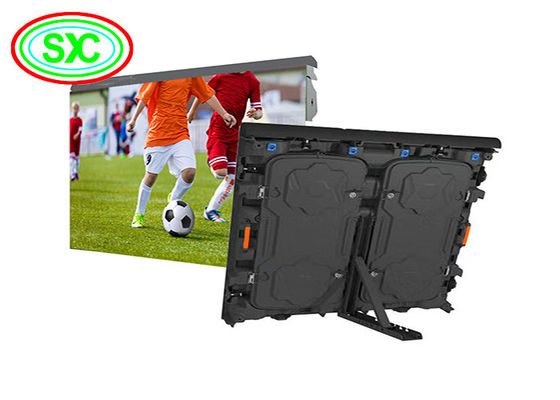

Cabinet details
ironed steel cabinet
Die casting aluminum

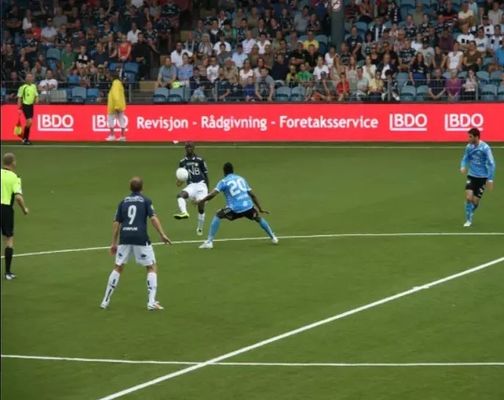

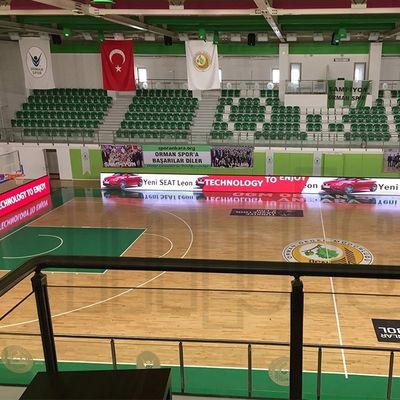

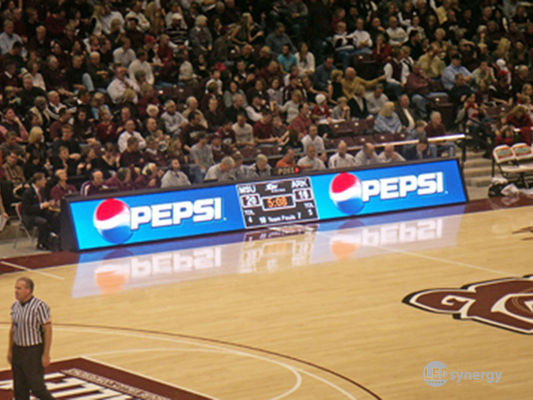

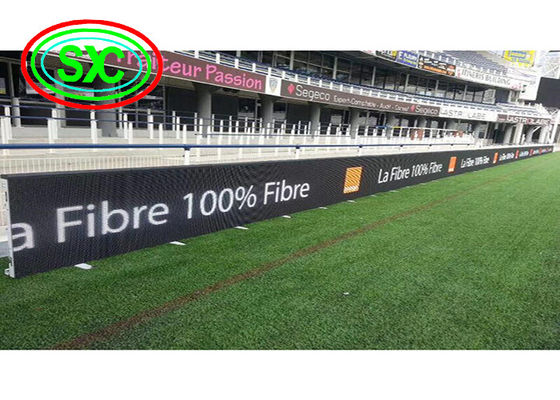

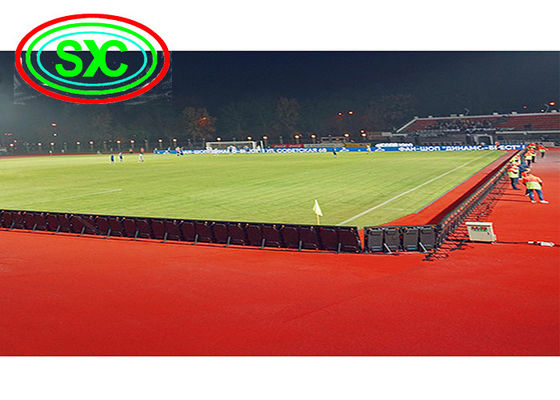

Our case
Our service
1)Reply your inquiry in 24 working hours.
2)Experienced staffs answer all your query in fluent English,Spanish,French,German etc
3)Customized design is available,OEM & ODM are welcomed.
4)Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs
5)Special discount and protection of sales area provided to our distributor.
6)Warmly welcome your visit in our company if available.
7 ) Guidance service: We can guide on line if customers have questions about the installation and usage.
For large project, we provide your engineer a week free training, or if customer could bear the relevant cost, our engineer can go to customer's country for on-site guidance.
8) Warranty period: 2 years after shipment.
After-Sale Service
1. Three year warranty , Lifetime free maintenance.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on
6. Special service for big project, such as stadium, exhibitions, squares and so on.
Company profile
Certificate
Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
