L'électronique Cie., Ltd de Shenzhen Shichuangxinke
le professionnel fait la bonne qualité, fournissent le produit et service parfait pour chaque client.
 |
| Place of Origin: | Made in china |
| Nom de marque: | SCXK |
| Certification: | CE,ROHS, FCC.UL.CUL |
| Model Number: | SCXK-P5 |
| Minimum Order Quantity: | one cabinet sand one module can be avaiable. |
|---|---|
| Prix: | Négociable |
| Détails d'emballage: | boîte en bois, boîte de vol, boîte en papier peuvent être disponibles( Toutes sortes de boîte garant |
| Delivery Time: | within 7-10days, the led disdplay can be sent to you after your payment |
| Payment Terms: | D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Material: | iron and steel cabinet | taille du placard: | 640 mm x 640 mm |
|---|---|---|---|
| module size: | 160mm x160mm | lampe à LED: | Le numéro de série |
| Led chip: | Epistar | dot density: | 62500dots/sqm |
| Pixels: | 5 mm | Life span: | 100000hours |
| Usage: | Outdoor | Display function: | Video |
Electronic Advertising Outdoor Full Color LED Display P5 HD for commercial shopping mall
Quick details
Our factory has our own characteristic culture.It is full of passion,warmth,has our own sunshine motto,every worker in this firm is not only workmate,what's more,we are friends,the friendship is rich,all the staff try their best to work everyday.Our work slogan is:Work warmly,live happily;The spirit is:Strictly demanding,Consciously dedication;The goal is:Customer front,Service first;Service idea:Service loyally,live Wonderfully;We believe that SCXK will be bigger and bigger with our effort near future.Welcome to experience it.

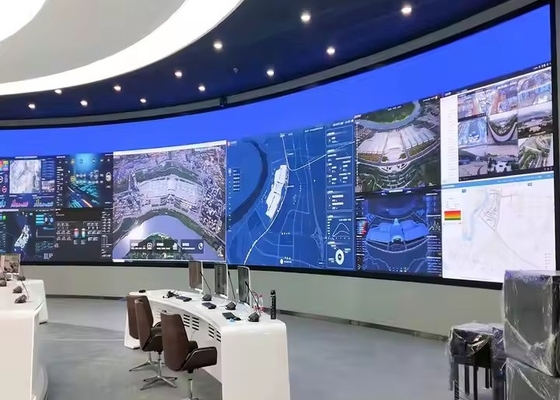

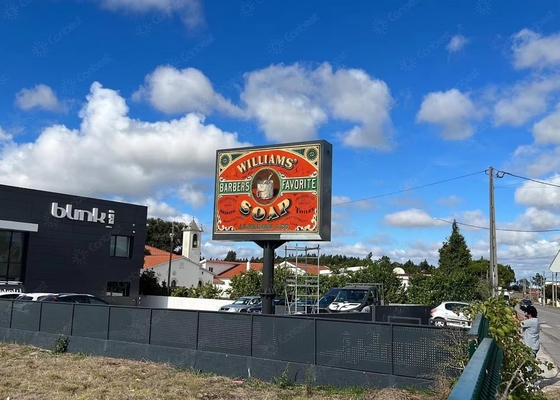

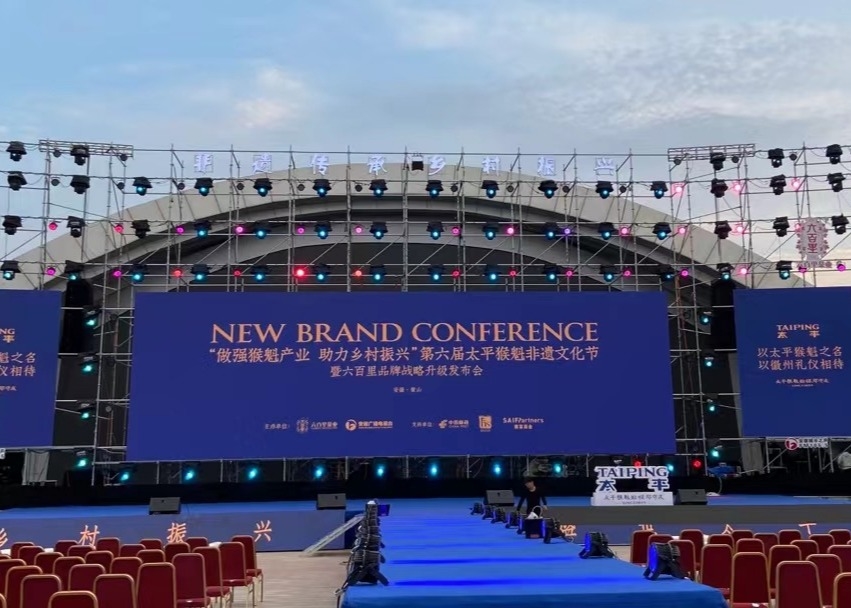

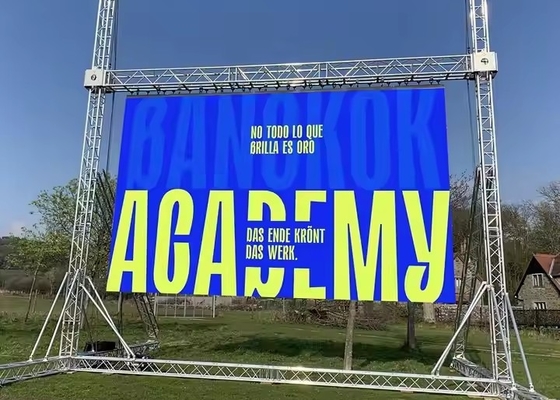

Project case
Specification as follows.
| LED Lamps | Type | SMD2121(High Brightness LEDs) | |||||||
| LED Standard | Real Pixel(1R1G1B) | ||||||||
| Red Wavelength | 625-630nm | ||||||||
| Green Wavelength | 515-530nm | ||||||||
| Blue Wavelength | 465-475nm | ||||||||
| LED Module | Pixel Pitch | 5mm | |||||||
| Module Size | 320mm x160mm | ||||||||
| Module Resolution | 64*32dots | ||||||||
| LED Cabinet | Cabinet Size | 960mmx960mm | |||||||
| Cabinet Resolution | 132dotsx132dots | ||||||||
| Cabinets Material | iron and steel cabinet | ||||||||
| LED Display | Pixel Density | 40000pixels/sq.m | |||||||
| Drive IC | MBI5024 | ||||||||
| Power Supply | Series connection | ||||||||
| Brightness | >5000cd/sqm | ||||||||
| Display Color | 16.7million | ||||||||
| Viewing Angle | 160°(Horizontal),110°(Vertical) | ||||||||
| Best Viewing Distance | 5m~200m | ||||||||
| Max Power Consumption | 600 w/sq.m | ||||||||
| Average Power Consumption | 300 w/sq.m | ||||||||
| Weight | 22kgs/sq.m | ||||||||
| Refresh Rate | 2500hz | ||||||||
| Input Voltage | AC220V/50H or AC110V/60H | ||||||||
| Output Voltage | DC5V,40A | ||||||||
| Grey Scale Levels | 8bit | ||||||||
| Display Colors | R(1024) x G(1024) x B(1024) | ||||||||
| MTBF | 10,000 hours | ||||||||
| Life-span | 100,000 hours | ||||||||
| Protection Level | IP43 | ||||||||
| Failure percentage of leds | less than 0.0003 | ||||||||
| Working Temperature | -25℃-60℃ | ||||||||
| Drive Mode | 1/32 scaning | ||||||||
| Working Humidity | 10%~99% | ||||||||
| Control System | Control method | Synchronization & Asynchronization | |||||||
| Control System | (software) Led studio | ||||||||
| Software | LED studio | ||||||||
| Input Signal | MPG/MPEG/MPV/MPA/AVI/VCD/SWF/RM/RA/RM/ASF/BMP/GIF/PCX/TXT/DOC.etc | ||||||||
| PC Operating system | Microsoft Windows 7, 98, 2000, XP and Vista | ||||||||
Competitive advantage
Q1. What's the warranty of your LED Display Screen ?
A1. We have a 3-years warranty for our led display screen, and 100,000 hours life span of the led lamps.
Q2. What about your pre-sale service and post-sale service?
A2. For pre-sale service. We have a professional sales team and a 8 years technical team who are willing to answer your question 24/7.We can offer a whole complete solution for your project!
Another style still can be available.
| Indoor full color SMD 3 in 1 led display | |||||||
| P2 Iron cabinet | 1/32scan | 256x128 | 128x64dots | 250000dots | 512x512 | $1,905.50 | wooden packaged |
| P2 die cast aluminum | 1/32scan | 256x128 | 128x64dots | 250000dots | 512x512 | $2,301.50 | flight case package |
| P2.5 Iron cabinet | 1/16scan | 160x160 | 64x64dots | 160000dots | 640x640 | $1,111.50 | wooden packaged |
| P2.5 die cast aluminum cabinet | 1/16scan | 160x160 | 64x64dots | 160000dots | 480x480 | $1,195.50 | flight case package |
| P3 Iron cabinet | 1/32scan | 192x192 | 64x64dots | 111111dots | 576x576 | $795.50 | wooden packaged |
| P3 die cast aluminum cabinet | 1/32scan | 192x192 | 64x64dots | 111111dots | 576x576 | $842.50 | flight case package |
| P3.91 Die cast aluminum (smd) | 1/16scan | 250X250 | 64x64dots | 65410 dots | 500X500 | $795.50 | flight case package |
| P4 iron cabinet(smd) | 1/16scan | 256X128 | 64x32dots | 62500dots | 768x768 | $603.50 | wooden packaged |
| P4 die cast aluminum cabinet (smd) | 1/16scan | 256x128 | 64X32dost | 62500dots | 512x512 | $655.50 | flight case package |
| P5 Iron cabinet | 1/16scan | 320x160 | 64x32dots | 40000dots | 640x640 | $480.50 | wooden packaged |
| P5 die cast aluminum cabinet | 1/16scan | 320X160 | 64X32dots | 40000dots | 640x640 | $555.50 | flight case package |
| P6 iron cabinet | 1/16scan | 384x192 | 64X32dost | 27777 dots | 768x768 | $398.50 | wooden packaged |
| P6 die cast aluminum cabinet | 1/16scan | 192X192 | 32x32dots | 27777dots | 576x576 | $478.50 | flight case package |
| p10 iron cabinet | 1/8scan | 320x160 | 32x16dots | 10000dots | 960x960 | $350.50 | wooden packaged |
| All the pricelist include the control system,3 years warranty!(we will send some spare parts based on your order | |||||||
For post-sale service. We can instruct you how to use, adjust the screens, and change the boken modules with spare parts. For asynchronous control We use Onbon, or Xixun control system.
So far ,we have many different project for our oversea market. And the P4 is very high defintion .If you have any question or confusion, just feel free to contact us.We will give you all kinds of assistance and supports.
MOQ and Sample
1.We welcome sample order to test and check quality .Mixed samples are acceptable.
2.Low MOQ, 1 piece for sample checking is available.
3.Please inform us formally before our production and confirm the design firstly based on our sample.
Good service
1.Your inquiry related to our products or prices will be replied in 24hrs.
2.Well−trained and experienced staffs to answer all your enquires in fluent English.
3.OEM&ODM, any your customized screen we can help you to design and put into product.
4. Good pre-sales and after-sales service, you are warmly welcome to visit our factory to learn the technical and maintenance skills and everything you need in our factory.
5.Protection of your sales area, ideas of design and all your private information.
FAQ
Q1. What's the warranty of your LED Display Screen ?
A1. We have a 3-years warranty for our led display screen, and 100,000 hours life span of the led lamps.
Q2. What about your pre-sale service and post-sale service?
A2. For pre-sale service. We have a professional sales team and a 8 years technical team who are willing to answer your question 24/7.
We can offer a whole complete solution for your project!
For post-sale service. We can instruct you how to use, adjust the screens, and change the boken modules with spare parts.
Also, we can send technicals to your country to solve problems. Mostly, our led display will not have big problems within warranty time!
Q3. Whats your payment term? How long it takes to delivery?
A3. We accept T/T and L/C, For both T/T and L/C, At least 30% deposit in advance, and the rest 70% before delivery.Our average Production time is 10 days, after receiving the deposit.
